TB
TB系列端子是采用板式螺钉压接底座封闭整体式结构，额定电压600V，额定电流分15A、25A、45A、60A、100A、共五种规格，可连接导线截面10~100m。该产品结构简单，安装方便，配用TO型端头使用，更加牢固可靠，可作各类电气装置中接线之用。
TB series terminal adopts the closed and integrated structure with plate type screw crimping connection base,rated voltage 600V,rated current can be divided into 15A，25A，45A，60Aand 100A five specifications totally, applicable sectional area of conded with simple construction anuctor is 10-100mm2.The product is featurd convenient installation,it will be even much firmer and more reliable when being used with TO type terminal,it can be applied to connection for various electric equipment.
本系列还防防尘盖板及PVC白色标记。This series of products also is equipped with dust cap and PVC white mark.
本系列产品可直接在底板上打孔安装。
This series of products can be perforated in the base plate and installed directly.

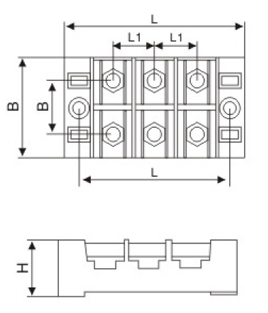

TB系列产品安装、外形尺寸表及示意图
Installation,outline size list and schematic diagram of YLSJ8TC series products
|
产品规格Product specification |
额定电流Ratedcurent（A） |
极数Pole number |
安装尺寸（mm）Mounting sizeL1 |
外形尺寸（mm）Outline sizeL（长）B（宽）/H（高） |
压接螺钉Crimpingterminal（mm） |
尺寸图Dimensional drawing |
|
TB-1503 |
15 |
3 |
36 |
47/22/15.5 |
M3 |
|
|
TB-1504 |
4 |
45 |
56/22/22.5 |
|||
|
TB-1505 |
5 |
54 |
65/22/15.5 |
|||
|
TB-1506 |
6 |
63 |
74/22/15.5 |
|||
|
TB-1510 |
10 |
99 |
110/22/15.5 |
|||
|
TB-1512 |
12 |
153 |
164/22/15.5 |
|||
|
TB-2503 |
25 |
3 |
45 |
56/30/17 |
M4 |
|
|
TB-2504 |
4 |
57 |
68/30/17 |
|||
|
TB-2505 |
5 |
69 |
80/30/17 |
|||
|
TB-2506 |
6 |
81 |
92/30/17 |
|||
|
TB-2510 |
10 |
99 |
110/22/15.5 |
|||
|
TB-2512 |
12 |
117 |
128/22/15.5 |
|||
|
TB-4503 |
45 |
3 |
58.5 |
69.5/68/21 |
M5 |
|
|
TB-4504 |
4 |
75 |
86/38/21 |
|||
|
TB-4505 |
5 |
91.5 |
102.5/38/21 |
|||
|
TB-4506 |
6 |
108 |
119/38/21 |
|||
|
TB-4510 |
10 |
174 |
185/38/21 |
|||
|
TB-4512 |
12 |
207 |
218/38/21 |
